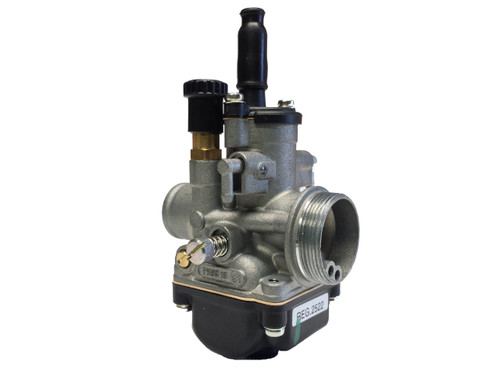

This type of PHBG carbs that mount with rubber intake manifold to the intake. This style of mounting can reduce vibrations to the carb and be a little tighter and less prone to air leaks than a clamp style carb that doesn't quite match up. These carbs have three jets, air mixture screw, and endless tuning opportunities thanks to a wide variety of needles, throttle slides, jets, etc. they solve many of the problems had with old inefficient carbs on motobecane, peugeot, puch, minarelli, sachs, garelli...
Pull choke mechanism fitted, cable type fittings can be installed with proper hardware if needed.
Does not inlcude plastic 32mm Air Filter Mount as shown.
Standard jetting * May vary*
- 40 Slide
- W7 needle
- 85 Main jet
- 262AU atomiser
- 50 Idle jet
Dellorto Part # 2522
**Update. These carburetors now come with a twist off cap, not the screw off style cap.
